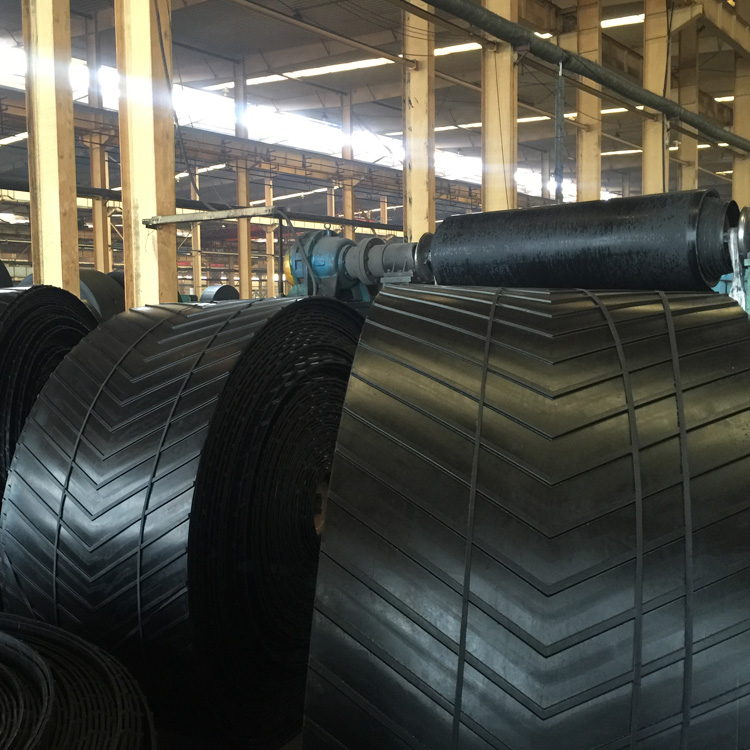

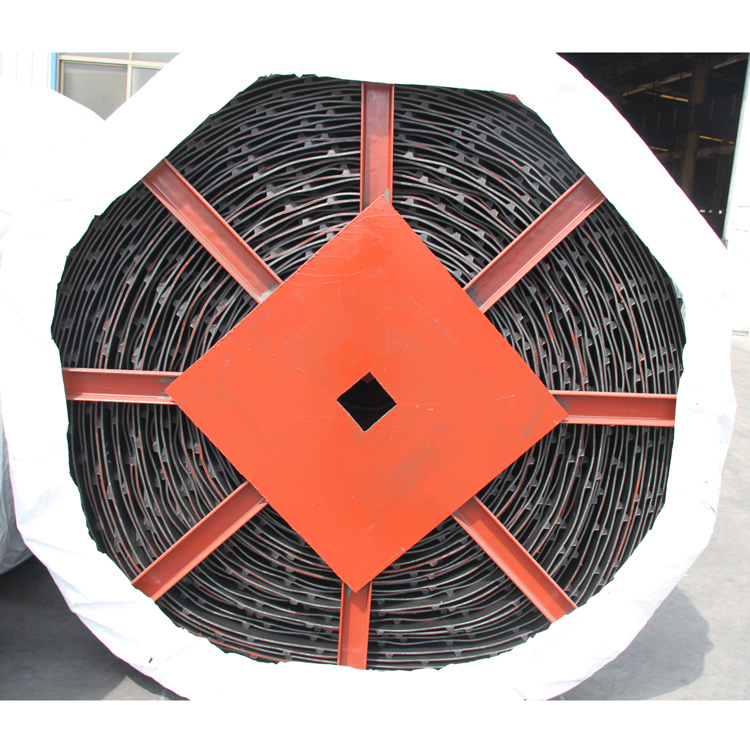

Chevron Conveyor Belt
Description

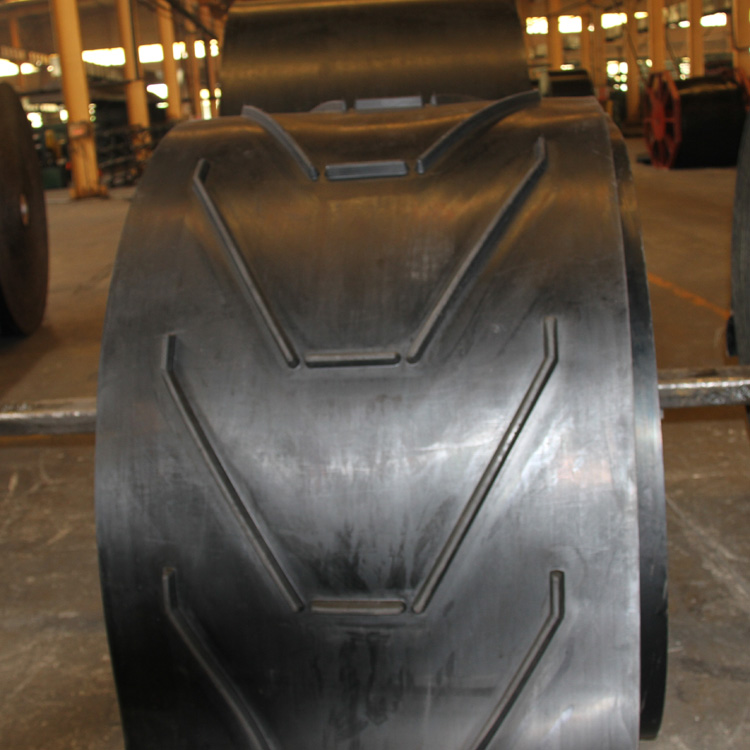

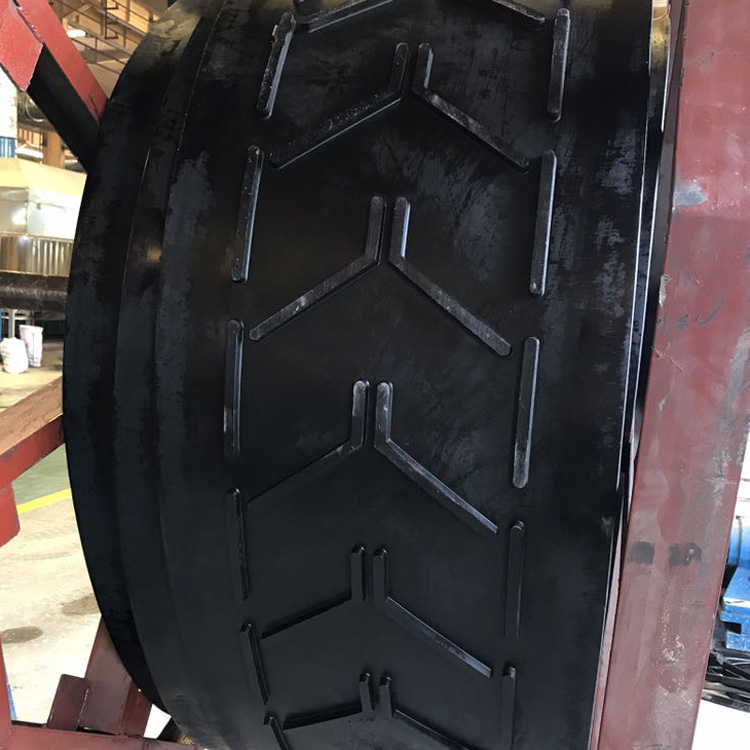

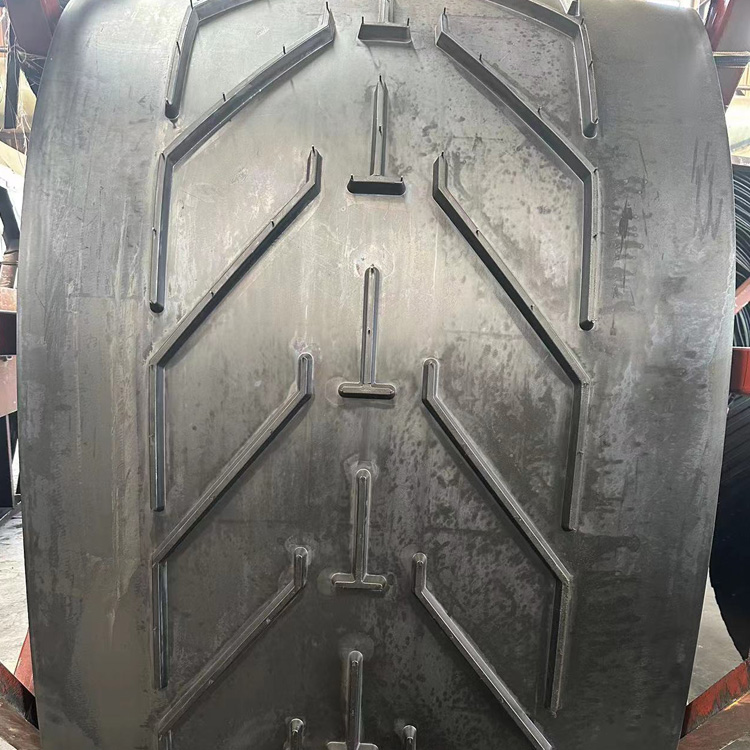

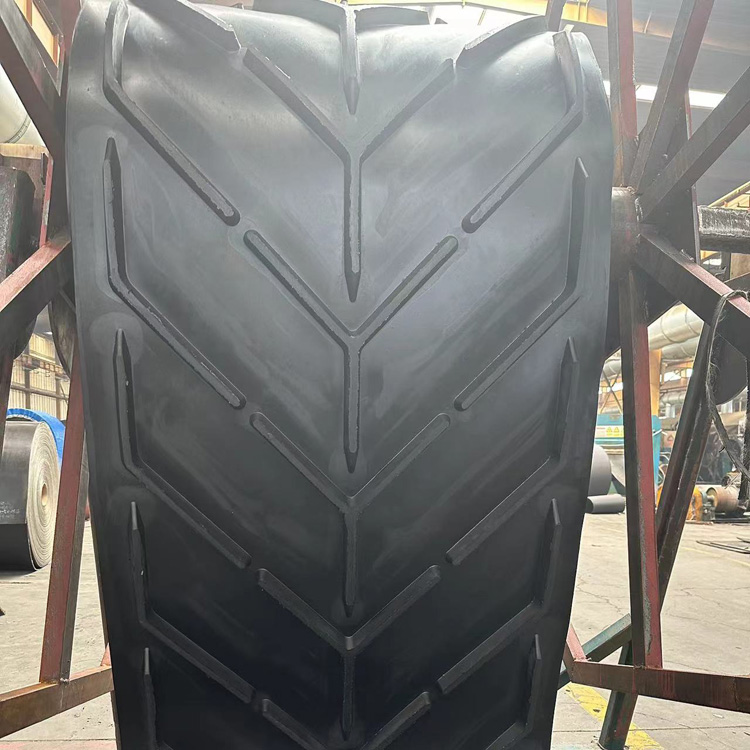

Chevron conveyor belts are used primarily when the angle of incline becomes too steep for a smooth conventional conveyor belt. The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.
● Application: There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45 C.
● Technical Data of Rubber Cover:
Tensile Strength: ≥10Mpa; Elongation at Break: ≥350%
Adhesive strength between carcass: ≥6.0N/mm
Adhesive strength between cover and carcass: ≥3.0N/mm
Elasticity: ≥32%; Abrasion: ≤200mm3
|

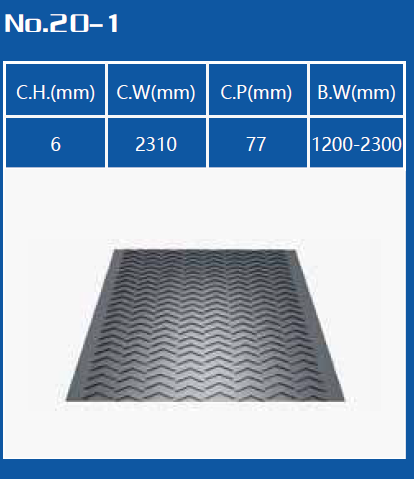

Chevron types:C6/C15/C25/Y32/V6 |
|||||
|
Cleat Profile |
Type |
Cleat Height (mm) |
Cleat Width (mm) |
Cleat Pitch (mm) |
Plain Area |
|
Metric System |
|||||
|
C5 |
C5 |
5 |
300-1200 |
100 |
300-1200 |
|
C6 |
6 |
300-1200 |
100 |
300-1200 |
|
|

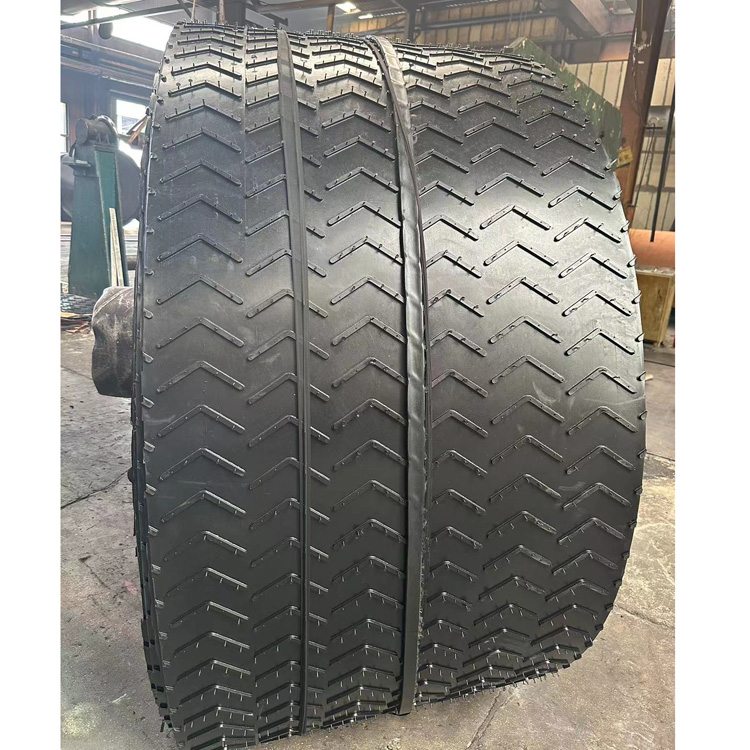

V6 |
V6 |
6 |
1200-1800 |
25 |
1200-2300 |
|
C12.7 |
C12.7 |
12.5 |
914.4 |
200 |
1100-1200 |
|
C15 |
C15-P550 |
15 |
550 |
250 |
600-1200 |
|
C15-P800 |
15 |
800 |
300 |
850-1200 |
|
|
C15-P730 |
15 |
730 |
300 |
800-1200 |
|
|
C25 |
C25-P450 |
25 |
450 |
335 |
500-1200 |
|
C25-P550 |
25 |
550 |
330 |
600-1200 |
|
|
C25-P750 |
25 |
750 |
330 |
800-1200 |
|
|
Y32 |
Y32-P900 |
32 |
900 |
330 |
1000-1200 |
